Yihi SX350 - 100w + Modulo Caricabatterie
SV02839C00000
Con l'acquisto di questo prodotto è possibile raccogliere fino a 8 Punti fedeltà. Il totale del tuo carrello 8 Punti fedeltà può essere convertito in un buono di 1,60 €.
questo prodotto non è più disponibile
Nuovo prodotto
Informazioni sul prodotto
Seleziona | In magazzino Invio in una giornata lavorativa Non disponibile | 82,50 € | |
Sconto di listino | - carrello da 0 € a 49 € - spese di spedizione escluse - Mancano € per raggiungere lo sconto successivo | 82,50 € | |
Spedizione Gratuita | - carrello da 49 € in poi - spedizione gratuita - Mancano € per raggiungere lo sconto successivo | 82,50 € | |
E' possibile eseguire gli aggiornamenti del firmware (E di conseguenza l'incremento del Wattaggio massimo)
Comodamente dal proprio computer (Per utenti esperti )

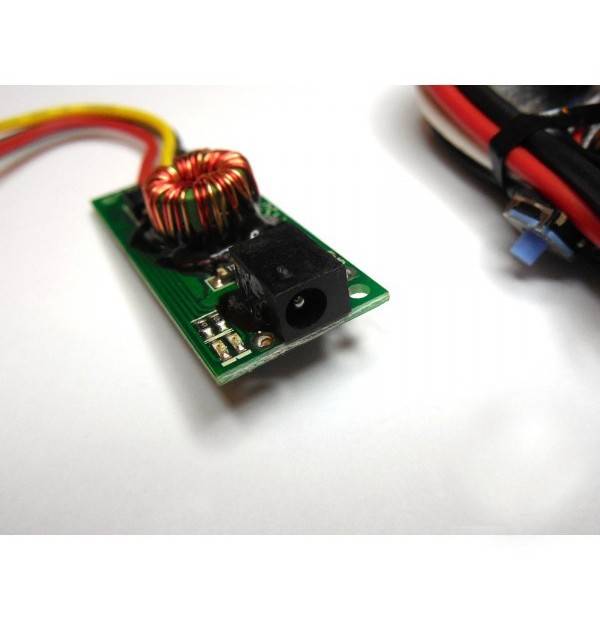

Incluso, Modulo caricabatterie da 9V per batterie in serie.
Specifiche Tecniche of YiHi SX350 100W Yihieicgar
Minimum | Typical | Max | ||||
1 | Output Power (2 Batteries) | 10 Watts | 50 Watts | 100 Watts New | ||
2 | Output Voltage DC-DC Buck-boost& Boost together | 1.0 Volts | 5.0 Vots | 9.5 Volts | ||
3 | Output Current | 1.25A | 12.0A | 40A New | ||
4 | Atomizer Resistance | 0.15 Ohms New | 0.5 Ohms | 3.0 Ohms | ||
5 | Input Voltage (2* 18650 & 7.4V Li-ion ) | 6.2 Volts | 7.4 Volts | 8.5 Volts | ||
6 | Input Current | 1.5 A | 10.0 A | 40A New | ||
7 | Screen On Current | 150 mA | ||||
8 | Quiescent Current | 1 mA | ||||
9 | Power Down Current | 300 uA | ||||
10 | Efficiency | 95% | ||||
11 | Screen size | 0.66" OLED | ||||
12 | Fire Method | One Fire Button | ||||
13 | Adjust Power Method | Both Gravity Sensor (Tilt) and Up&Down Button Available | ||||
14 | USB Charging for Battery | NO | ||||
15 | App controlled Bluetooth | NO | ||||
16 | Software Upgrate/GUI operate | YES (YiHiEcigar SXi Software ) | ||||
17 | Charging for Mobile Phone | N/A | ||||
18 | Customize Logo | YES | ||||
19 | Protection: | 1. Reverse Polarity Protection (required to solder an extra negative wire to the pinout labeled Bat - . Which is just above the Red positive wire on the right side of the board | ||||
2. Output Short Protection | ||||||
3. Low Resistance Protection | ||||||
4. Battery low voltage Protection | ||||||
5. Temperature Overheat Protection |
***********************
ATTENZIONE, I CIRCUITI UNA VOLTA SALDATI PERDONO LA GARANZIA, DATO CHE NON E' PIU' POSSIBILE ESCLUDERE ERRORI DI ASSEMBLAGGIO, CONSIGLIAMO DI TESTARE I CIRCUITI PRIMA CON CAVI VOLANTI E SOLO SUCCESSIVAMENTE, UNA VOLTA ACCERTATO IL FUNZIONAMENTO, PROCEDERE ALL'ASSEMBLAGGIO
***********************
